SQL CASE STUDY 8
Snapchat SQL Analysis
Your challenge is to craft SQL queries to extract insights from the Snapchat database.

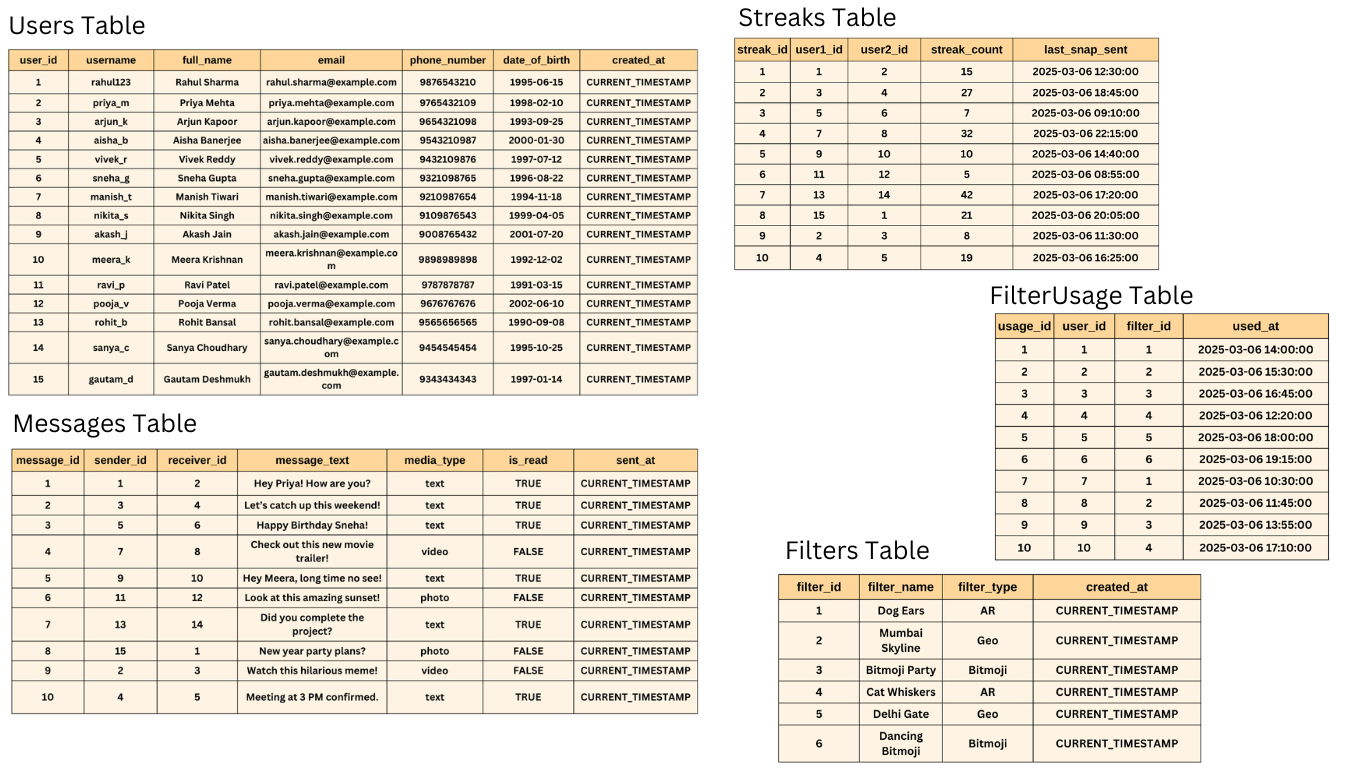

Tables
- Users
- Messages
- Streaks
- Filters
- FilterUsage

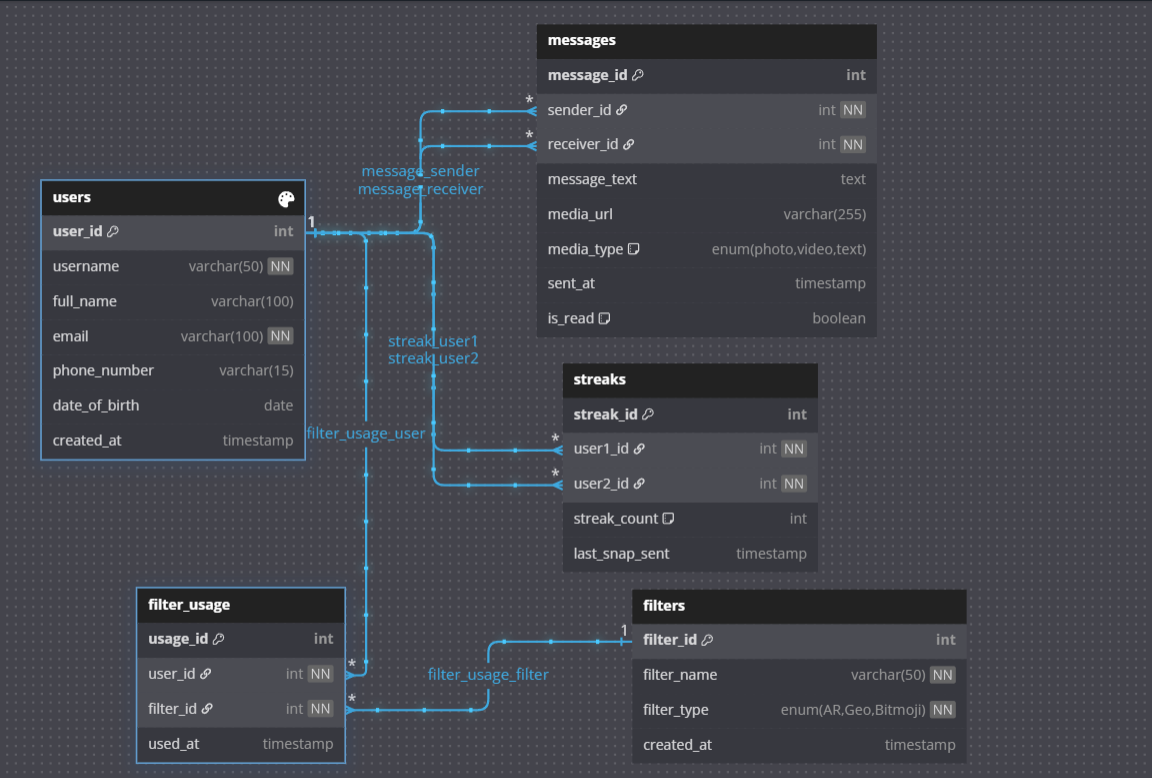

Entity Relationship Diagram
SQL SCHEMA
-- Creating Users Table
CREATE TABLE Users (
user_id INT PRIMARY KEY AUTO_INCREMENT,
username VARCHAR(50) UNIQUE NOT NULL,
full_name VARCHAR(100),
email VARCHAR(100) UNIQUE NOT NULL,
phone_number VARCHAR(15) UNIQUE,
date_of_birth DATE,
created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);
-- Inserting 15 Sample Users
INSERT INTO Users (username, full_name, email, phone_number, date_of_birth) VALUES
('rahul123', 'Rahul Sharma', 'rahul.sharma@example.com', '9876543210', '1995-06-15'),
('priya_m', 'Priya Mehta', 'priya.mehta@example.com', '9765432109', '1998-02-10'),
('arjun_k', 'Arjun Kapoor', 'arjun.kapoor@example.com', '9654321098', '1993-09-25'),
('aisha_b', 'Aisha Banerjee', 'aisha.banerjee@example.com', '9543210987', '2000-01-30'),
('vivek_r', 'Vivek Reddy', 'vivek.reddy@example.com', '9432109876', '1997-07-12'),
('sneha_g', 'Sneha Gupta', 'sneha.gupta@example.com', '9321098765', '1996-08-22'),
('manish_t', 'Manish Tiwari', 'manish.tiwari@example.com', '9210987654', '1994-11-18'),
('nikita_s', 'Nikita Singh', 'nikita.singh@example.com', '9109876543', '1999-04-05'),
('akash_j', 'Akash Jain', 'akash.jain@example.com', '9008765432', '2001-07-20'),
('meera_k', 'Meera Krishnan', 'meera.krishnan@example.com', '9898989898', '1992-12-02'),
('ravi_p', 'Ravi Patel', 'ravi.patel@example.com', '9787878787', '1991-03-15'),
('pooja_v', 'Pooja Verma', 'pooja.verma@example.com', '9676767676', '2002-06-10'),
('rohit_b', 'Rohit Bansal', 'rohit.bansal@example.com', '9565656565', '1990-09-08'),
('sanya_c', 'Sanya Choudhary', 'sanya.choudhary@example.com', '9454545454', '1995-10-25'),
('gautam_d', 'Gautam Deshmukh', 'gautam.deshmukh@example.com', '9343434343', '1997-01-14');
-- Creating Messages Table
CREATE TABLE Messages (
message_id INT PRIMARY KEY AUTO_INCREMENT,
sender_id INT NOT NULL,
receiver_id INT NOT NULL,
message_text TEXT,
media_url VARCHAR(255),
media_type ENUM('photo', 'video', 'text') NOT NULL DEFAULT 'text',
sent_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
is_read BOOLEAN DEFAULT FALSE,
FOREIGN KEY (sender_id) REFERENCES Users(user_id),
FOREIGN KEY (receiver_id) REFERENCES Users(user_id)
);
-- Inserting 15 Sample Messages
INSERT INTO Messages (sender_id, receiver_id, message_text, media_type, is_read) VALUES
(1, 2, 'Hey Priya! How are you?', 'text', TRUE),
(3, 4, 'Let’s catch up this weekend!', 'text', TRUE),
(5, 6, 'Happy Birthday Sneha!', 'text', TRUE),
(7, 8, 'Check out this new movie trailer!', 'video', FALSE),
(9, 10, 'Hey Meera, long time no see!', 'text', TRUE),
(11, 12, 'Look at this amazing sunset!', 'photo', FALSE),
(13, 14, 'Did you complete the project?', 'text', TRUE),
(15, 1, 'New year party plans?', 'photo', FALSE),
(2, 3, 'Watch this hilarious meme!', 'video', FALSE),
(4, 5, 'Meeting at 3 PM confirmed.', 'text', TRUE),
(6, 7, 'This song is a vibe!', 'video', FALSE),
(8, 9, 'Birthday celebration pics!', 'photo', TRUE),
(10, 11, 'Want to go trekking?', 'text', FALSE),
(12, 13, 'Check this out!', 'photo', TRUE),
(14, 15, 'Good morning! Have a great day!', 'text', TRUE);
-- Creating Streaks Table
CREATE TABLE Streaks (
streak_id INT PRIMARY KEY AUTO_INCREMENT,
user1_id INT NOT NULL,
user2_id INT NOT NULL,
streak_count INT DEFAULT 0,
last_snap_sent TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
FOREIGN KEY (user1_id) REFERENCES Users(user_id),
FOREIGN KEY (user2_id) REFERENCES Users(user_id)
);
-- Inserting 15 Sample Streaks
INSERT INTO Streaks (user1_id, user2_id, streak_count, last_snap_sent) VALUES
(1, 2, 15, '2025-03-06 12:30:00'),
(3, 4, 27, '2025-03-06 18:45:00'),
(5, 6, 7, '2025-03-06 09:10:00'),
(7, 8, 32, '2025-03-06 22:15:00'),
(9, 10, 10, '2025-03-06 14:40:00'),
(11, 12, 5, '2025-03-06 08:55:00'),
(13, 14, 42, '2025-03-06 17:20:00'),
(15, 1, 21, '2025-03-06 20:05:00'),
(2, 3, 8, '2025-03-06 11:30:00'),
(4, 5, 19, '2025-03-06 16:25:00'),
(6, 7, 25, '2025-03-06 23:10:00'),
(8, 9, 30, '2025-03-06 10:50:00'),
(10, 11, 6, '2025-03-06 13:15:00'),
(12, 13, 14, '2025-03-06 15:00:00'),
(14, 15, 9, '2025-03-06 19:35:00');
-- Creating Filters Table
CREATE TABLE Filters (
filter_id INT PRIMARY KEY AUTO_INCREMENT,
filter_name VARCHAR(50) NOT NULL,
filter_type ENUM('AR', 'Geo', 'Bitmoji') NOT NULL,
created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);
-- Inserting 6 Sample Filters
INSERT INTO Filters (filter_name, filter_type) VALUES
('Dog Ears', 'AR'),
('Mumbai Skyline', 'Geo'),
('Bitmoji Party', 'Bitmoji'),
('Cat Whiskers', 'AR'),
('Delhi Gate', 'Geo'),
('Dancing Bitmoji', 'Bitmoji');
-- Creating Filter Usage Table
CREATE TABLE FilterUsage (
usage_id INT PRIMARY KEY AUTO_INCREMENT,
user_id INT NOT NULL,
filter_id INT NOT NULL,
used_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
FOREIGN KEY (user_id) REFERENCES Users(user_id),
FOREIGN KEY (filter_id) REFERENCES Filters(filter_id)
);
-- Inserting 15 Sample Filter Usage
INSERT INTO FilterUsage (user_id, filter_id, used_at) VALUES
(1, 1, '2025-03-06 14:00:00'),
(2, 2, '2025-03-06 15:30:00'),
(3, 3, '2025-03-06 16:45:00'),
(4, 4, '2025-03-06 12:20:00'),
(5, 5, '2025-03-06 18:00:00'),
(6, 6, '2025-03-06 19:15:00'),
(7, 1, '2025-03-06 10:30:00'),
(8, 2, '2025-03-06 11:45:00'),
(9, 3, '2025-03-06 13:55:00'),
(10, 4, '2025-03-06 17:10:00'),
(11, 5, '2025-03-06 20:25:00'),
(12, 6, '2025-03-06 22:00:00'),
(13, 1, '2025-03-06 21:40:00'),
(14, 2, '2025-03-06 23:55:00'),
(15, 3, '2025-03-06 08:10:00');
Copy and paste the SQL schema in DB Fiddle to perform SQL analysis.
QUESTIONS
- 1️⃣ Find All Users ?
- 2️⃣ Find All Messages ?
- 3️⃣ Find Streaks with Count Greater Than 10 ?
- 4️⃣ Find Messages That Contain the Word "Hey" ?
- 5️⃣ Count Total Users ?
- 6️⃣ Find Users Born After the Year 2000 ?
- 7️⃣ Find All Unread Messages ?
- 8️⃣ Find Users Who Used a Specific Filter ('Cat Whiskers') ?
- 9️⃣ Find Most Used Filter by Users ?
- 🔟 Find all filters sorted alphabetically in ascending order ?
